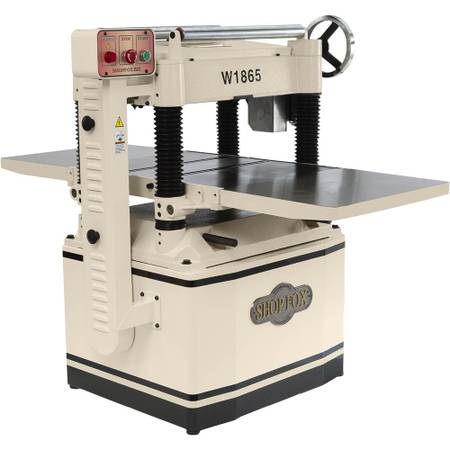

planer -SHOP FOX W1865 20 inch spiral head new in crate in stock!! - $4,589 (Beaver Falls)
401 7th Ave
QR Code Link to This Post
The inserts sit at a slight angle to the for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels.
The 20" x 56" precision-ground cast-iron table ensures accurate and consistent results, as the board will be properly supported and guided during the planing process.
The feed rate control knob allows the feed rate to be 28 FPM when pushed in and 16 FPM when pulled out.
The easy access pedestal-mounted controls include a magnetic switch with thermal overload protection.
The 5" dust port connects to your dust-collection system to extract shavings and dust during operation.
Like all Shop Fox planers, the W1865 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The W1865 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your planer.
The Customer Service and Technical Support Teams are also U.S.-based. Parts for the planer may be available online and shipped from the parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
Motor: 5 HP, 220V, single-phase, 23A
Maximum cutting width: 20"
Maximum cutting thickness: 8"
Maximum cutting depth: 1/8"
Minimum length of stock: 7"
Minimum stock thickness: 1/4"
Cutterhead diameter: 3-1/4"
Cutterhead type: 4-row helical, 92 inserts
Feed rate: 16, 28 FPM
Table size: 20" x 56"
Dust port size: 5"
Overall dimensions: 44" W x 56" D x 45" H
Approximate shipping weight: 882 lbs.
FEATURES:
Two-year warranty!!
Helical cutterhead with 92 indexable carbide inserts
Triple V-belt drive
Two-speed chain-driven automatic feed rollers
Hardened anti-kickback fingers
Precision-ground cast-iron table with extension wings
Locking table
Ball-bearing return rollers
Depth scales in both inch and metric
Serrated steel outfeed roller
We are open M-F 8-5 and every other Saturday until noon; the next one being 10th & 24th. We are closed the first: Happy New Year!!
This unit is in stock in our Beaver Falls warehouse. They are selling fast and we are getting lower in stock, so don’t sleep too long if you are looking at one! Buy one today, and you can be planning with it tonight! NO shipping or damage to worry about! We are open M-F 8-5 and every other Saturday until noon; the next open Saturdays are Dec. 6th & 20th. We will be closed Dec. 24-26th and open 8-5 on Saturday, Dec. 27th. Happy holidays!
