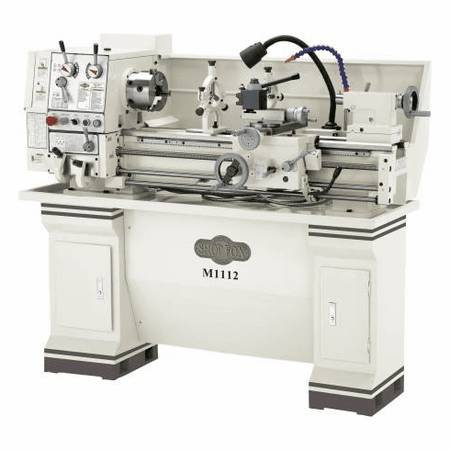

Lathe- Shop Fox M1112 - $6,000 (Beaver Falls)
401 7th Ave
QR Code Link to This Post
Supplied with a 2 HP motor, the 9-speed gearhead of the M1112 produces spindle speeds from 70-1400 RPM.
The spindle has a D1-5 camlock with an MT#5 taper and 1.57" bore. The tailstocks have an MT#3 taper and 4" of quill travel.
The spider mount system is especially designed for supporting long workpieces that extend through the outboard end of the spindle.
The tailstock lock system features a drive hub to ensure consistent draw-down alignment every time.
Longitudinal and cross slide powered motions are controlled by the carriage/cross feed lever.
Other features include a heavy-duty, vibration-dampening steel stand, bearing-tipped follow rest and steady rest.
The M1112 manual was written by our U.S.-based Documentation Department is packed with useful information.
SPECIFICATIONS: Motor: 2 HP, 220V, single-phase, 12A Swing over bed: 12" Distance between centers: 36" Swing over cross slide: 7" Swing over saddle: 11-11/32" Cross slide travel: 6-1/4" Compound travel: 3-1/4" Carriage travel: 28-7/8" Spindle speeds: 9, 70–1400 RPM Spindle bore: 1.57" Spindle nose: D1-5 camlock Spindle taper: MT#5 Bed width: 7-1/4" Tailstock barrel taper: MT#3 Tailstock barrel travel: 4" Leadscrew: 8 TPI Longitudinal feed range: 40, 0.0011"–0.0310" Cross feed range: 40, 0.0004"–0.0105" in./rev. Thread range (inch): 40, 4–112 TPI Thread range (metric): 29, 0.2–4.5 mm Max. tool size: 5/8" Overall size: 61"L x 26" W x 54-1/2"H Approximate shipping weight: 1358 lbs. FEATURES: Two-year warranty!! Easy-to-use lever controls Full length splash guard ON/OFF reverse switch on carriage LED work light Ball bearing steady/follow rests Outboard end support screws Socket for tailstock lock Steel stand with extended base Cast-aluminum gear cover STANDARD EQUIPMENT: One MT#3 live center Two MT#3 dead centers (one carbide-tipped) 1/2" drill chuck with MT#3 arbor 6" 3-Jaw chuck with 2-piece reversible jaws 8" 4-Jaw chuck with reversible jaws 10" faceplate Quick-change tool post with one tool holder Set of six change gears Hardened-and-ground cast-iron bed Tool box
