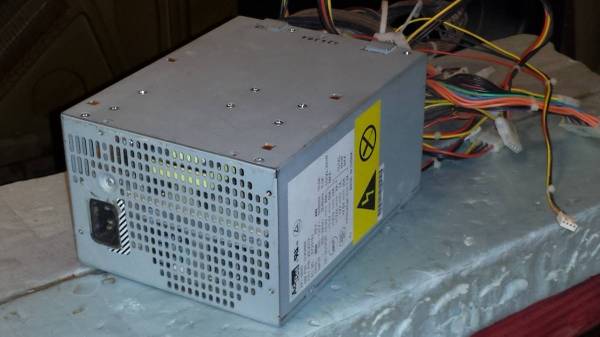

Power Supply 490w AcBel API8849 IBM IntelliStation 6866 01K9884 "ATX" - $50 (Jeannette, PA)

Power Supply 490w AcBel API8849 IBM IntelliStation 6866 01K9884 "ATX" 1

Power Supply 490w AcBel API8849 IBM IntelliStation 6866 01K9884 "ATX" 1 thumbnail

google map

more ads by this seller

QR Code Link to This Post

PSU for IBM IntelliStation Z Pro Type 6866.

Years ago, I used this in an ATX tower where I was looking for a high quality PSU. It can be used with the following mods:

1) PSU Case is taller: 7-3/4" deep x 6" wide x 4-1/8 tall
2) A dummy 1.5a load for the 2.5v P4 connector is required (and included).

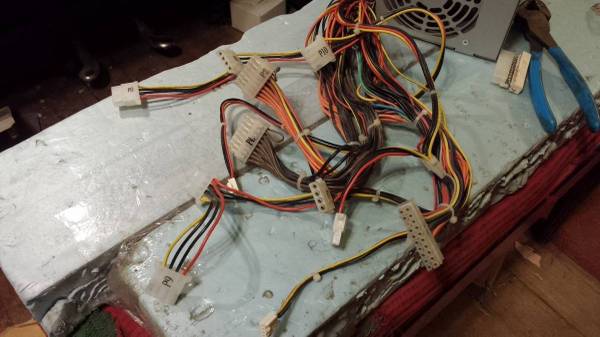

Outputs are:

+5.0v 44a
+3.3v 50a
+12vp 12a
+12vd 6a
MAX TOTAL ABOVE 395w

-12v 1a
+2.5v 30a
+5v aux/Lan 1.2a

MAX TOTAL FOR ALL ABOVE 490w
